Eventuri Gloss Carbon Fibre Intake System - Toyota GR86

Toyota GR86

Performance Increase : 10-14hp, 10-11ft-lb

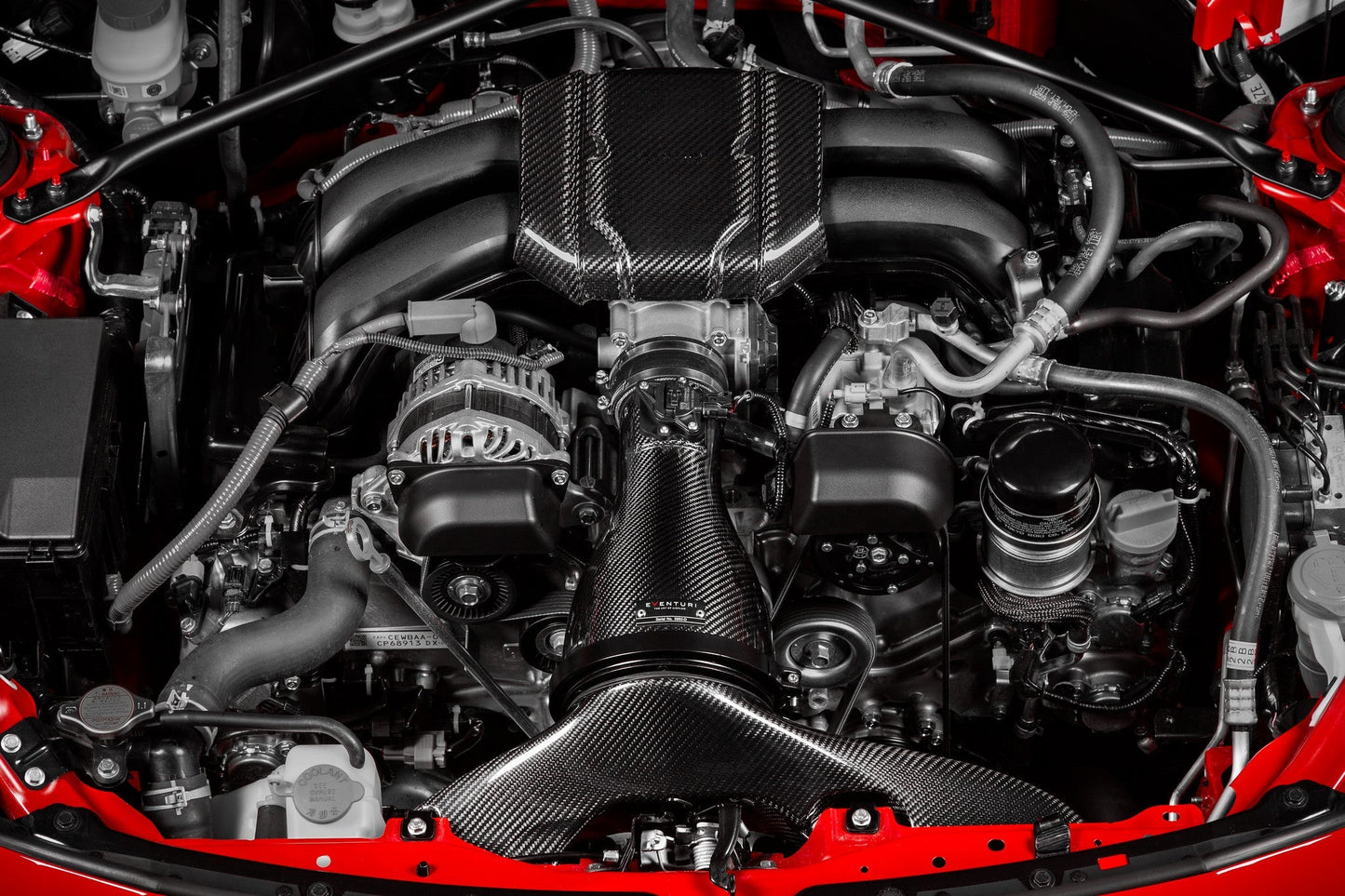

*Images show our optional carbon engine cover.

The GR86 Intake is a culmination of testing numerous configurations with over 125 dyno runs to arrive at an optimised design. We tested both stock and tuned cars to assess the impact of changing the intake for a less restrictive version. The NA 2.4L Boxer engine is sensitive to intake air temperatures so our initial priority was to ensure a fully sealed system. Dyno testing revealed a dip in power around 6000rpm on the stock ECU. This dip persists no matter what the intake configuration is – even with all possible restrictions removed, a higher flowing intake creates a strong engine resonance at this rpm causing a momentary dip below the stock curve. The stock airbox has a baffling effect at this rpm but then also restricts the power at the top end. By iterating our design through testing different intake lengths, single and dual duct openings and even adding baffles, we arrived at a version which minimises the resonance dip while gaining 14hp at the top end on the stock ECU. Once the ECU is tuned we can see large mid-range gains and an elimination of the dip in power below the stock curve.

The Eventuri Difference

The GR86 Eventuri system uses our Patented Carbon fiber Housing which provides an aerodynamically efficient airflow path from the filter to the engine. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect and maintains laminar flow conditions to reduce the drag on the engine.

The Eventuri GR86 intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. We use 100% pre-preg carbon fiber with no fibreglass which means we can achieve a smooth internal surface to maintain smoother airflow. Here are the details for each component and the design ethos behind them:

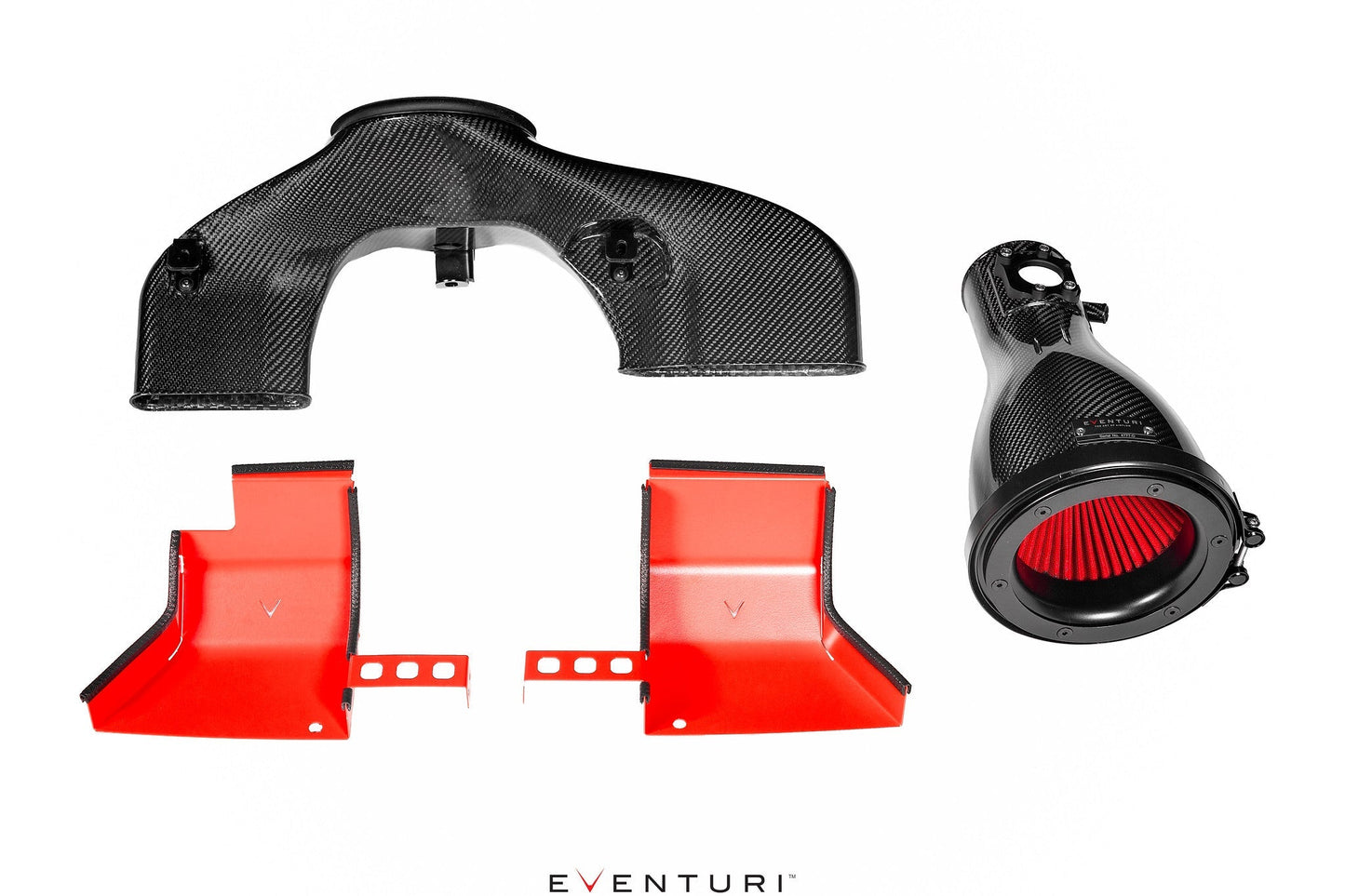

Each intake system consists of:

• Carbon Fiber Patented Venturi Filter Housing with integrated MAF section
• Bespoke High Flow Dry Cone Filter
• Carbon Fiber Dual Feed Inlet Duct
• Laser Cut Front Air Scoops
• Custom Made Hardware
• Laser Cut Stainless Steel Brackets
• CNC Machined MAF Boss and Bracket Mounts
