Eventuri Carbon Fibre Intake System - Toyota GR Corolla

Performance Increase : 15-17hp, 15-18ft-lb

Shown in both Gloss and Matte finishes.

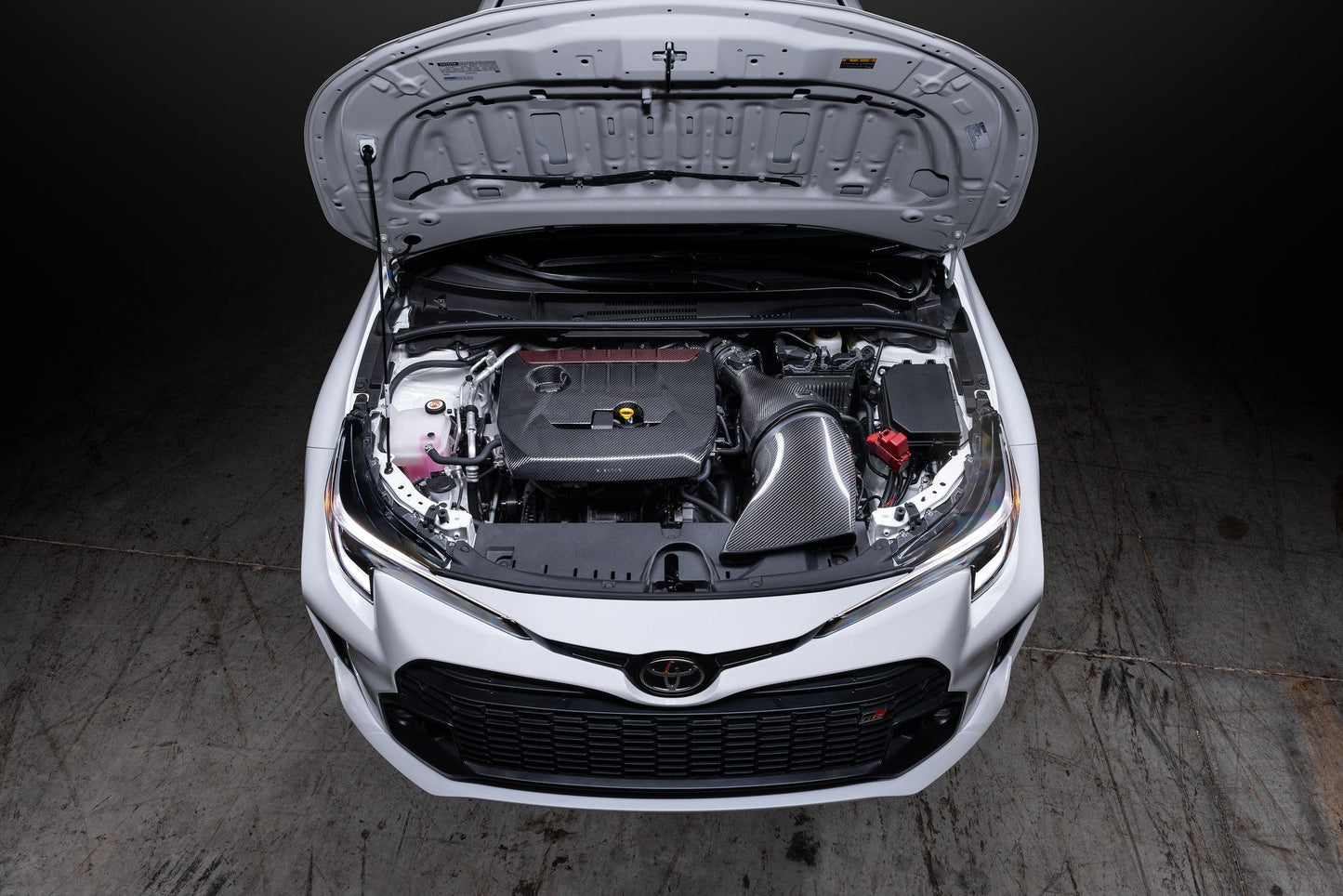

*Images show our optional carbon engine cover.

The GR Corolla Intake follows on from our GR Yaris system which was developed through extensive data logging of temperatures, flow rates and dyno testing. Since this is a turbocharged engine, heat and volume were the main considerations during development. This intake system has been developed to offer the highest possible flow rate whilst maintaining the lowest intake temperatures possible. Each component has been designed to provide the turbo with a smooth and free flowing path. By ensuring a sealed system we have improved on the IAT’s of the OEM airbox whilst at the same time increasing the internal volume to reduce the pressure drop and therefore reduce pumping losses of the turbo. In doing so the turbo is able to operate more efficiently and therefore reaches peak boost sooner to produce a net performance gain.

The filter itself has an outer diameter of 210mm or 8.3″ with a filtration surface area of over 130,000mm^2. The patented Venturi housing has been designed to provide the maximum internal volume possible for the GR Corolla and provides laminar flow to the turbo tube.

The Eventuri Difference

The GR Corolla Eventuri system uses our Patented Carbon fiber Housing which provides an aerodynamically efficient airflow path from the filter to the turbo. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect and maintains laminar flow conditions to reduce the drag on the turbo.

The Eventuri GR Corolla intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. We use 100% pre-preg carbon fiber with no fibreglass which means we can achieve a smooth internal surface to maintain smoother airflow. Here are the details for each component and the design ethos behind them:

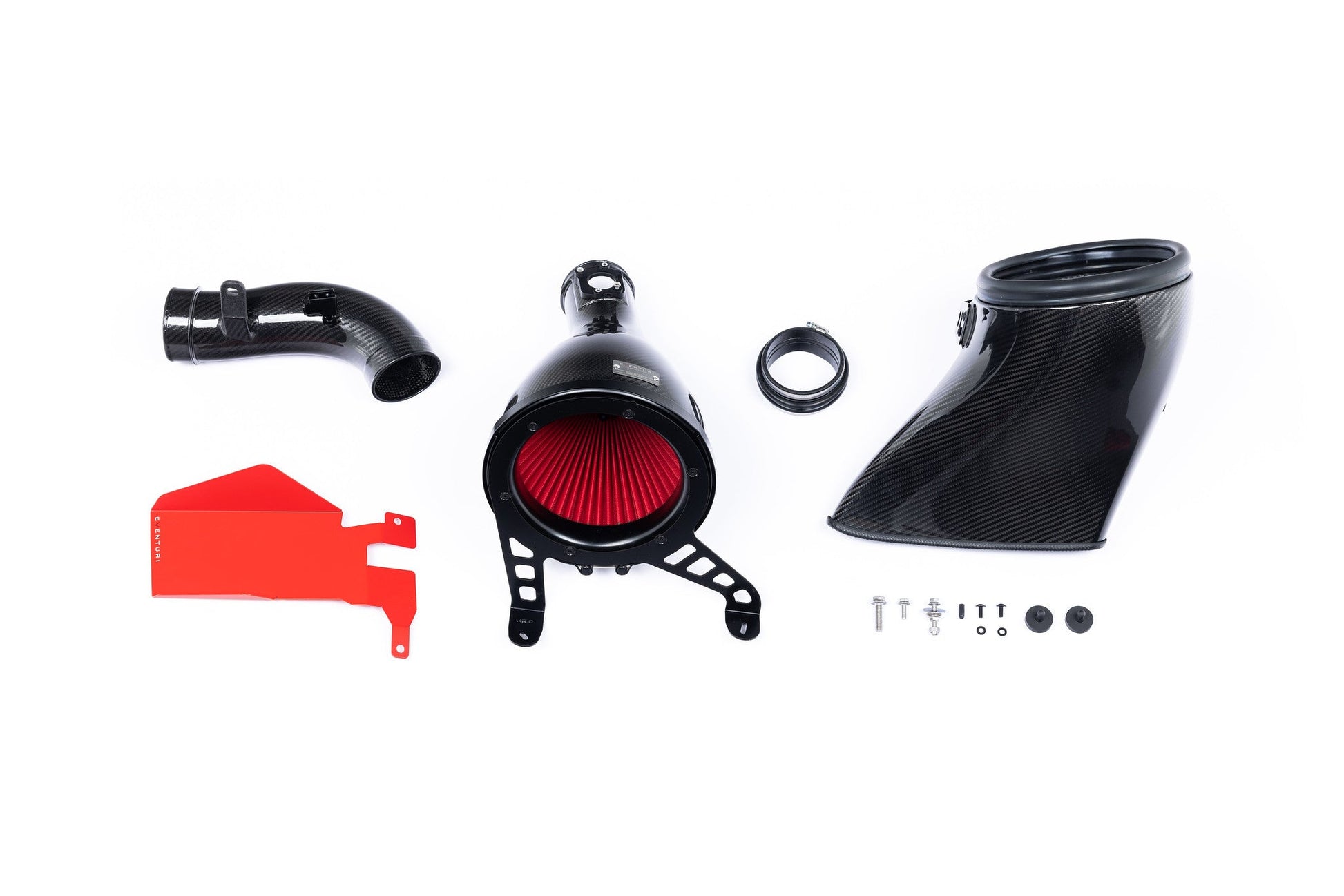

Each intake system consists of:

• Carbon Fiber Patented Venturi Filter Housing with integrated MAF section
• Bespoke High Flow Dry Cone Filter
• Carbon Fiber Inlet Duct
• Carbon Fiber Rear Tube
• Laser Cut Front Air Scoop
• Custom Made Hardware
• Laser Cut Stainless Steel Brackets
• Custom EPDM Hose
• CNC Machined MAF Boss and Bracket Mounts
